VDSL2 technology delivers VDSL broadband speeds of up to 100Mbps simultaneously in both the upstream and downstream directions. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs.
*The TD-W9960 is compatible with VDSL2, ADSL2+, ADSL2 and ADSL.
| brand |
|---|
| HARDWARE FEATURES | |
|---|---|
| Interface | 3 10/100Mbps RJ45 LAN Ports 1 10/100Mbps RJ45 LAN/WAN Port 1 RJ11 Port |
| Button | WPS Button RESET Button Power ON/OFF Button |
| External Power Supply | 9VDC/0.6A |
| IEEE Standards | IEEE 802.3, 802.3u |
| VDSL2 Standards | ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
| Dimensions ( W x D x H ) | 181.6 x 129.7 x 36.2mm |
| Antenna Type | Omni directional, Fixed |
| Antenna Gain | 2 x 5dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.400-2.4835GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall, SPI Firewall, DoS Protection, IP & MAC Binding, Service Filtering, Access Control, Parental Controls |

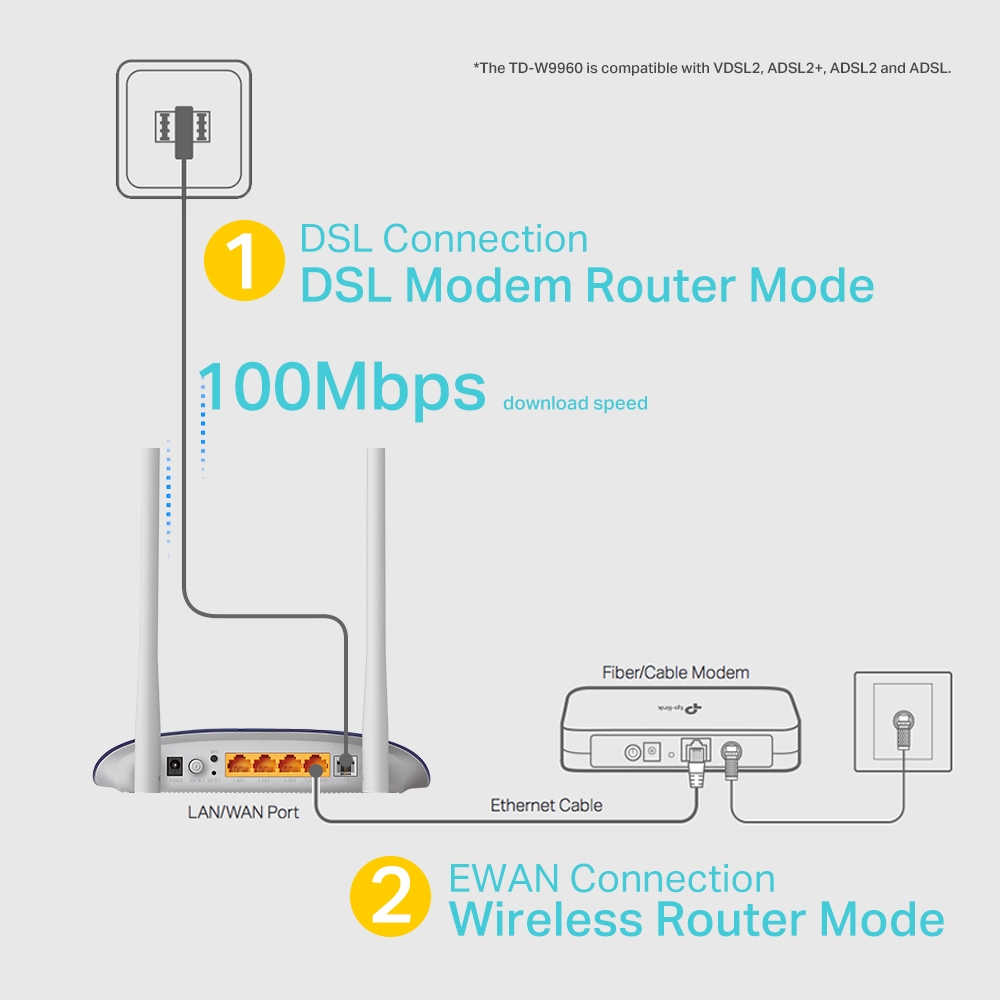

| Operating Modes | VDSL/ADSL Modem Router, Wireless Router, |
| Management | Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web Based Firmware Upgrade, Diagnostic Tools |
| VPN Pass-Through | IPSec VPN |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | PPPoE (RFC2516) PPPoA (RFC 2364) MER\IPoE (RFC 1483 Routed) IPoA (RFC1577/2225) Bridge (RFC1483 Bridge) |
| Advanced Features | Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| APP | Tether App |
| NAT | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | TD-W9960 External DSL Splitter RJ-11 DSL Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
