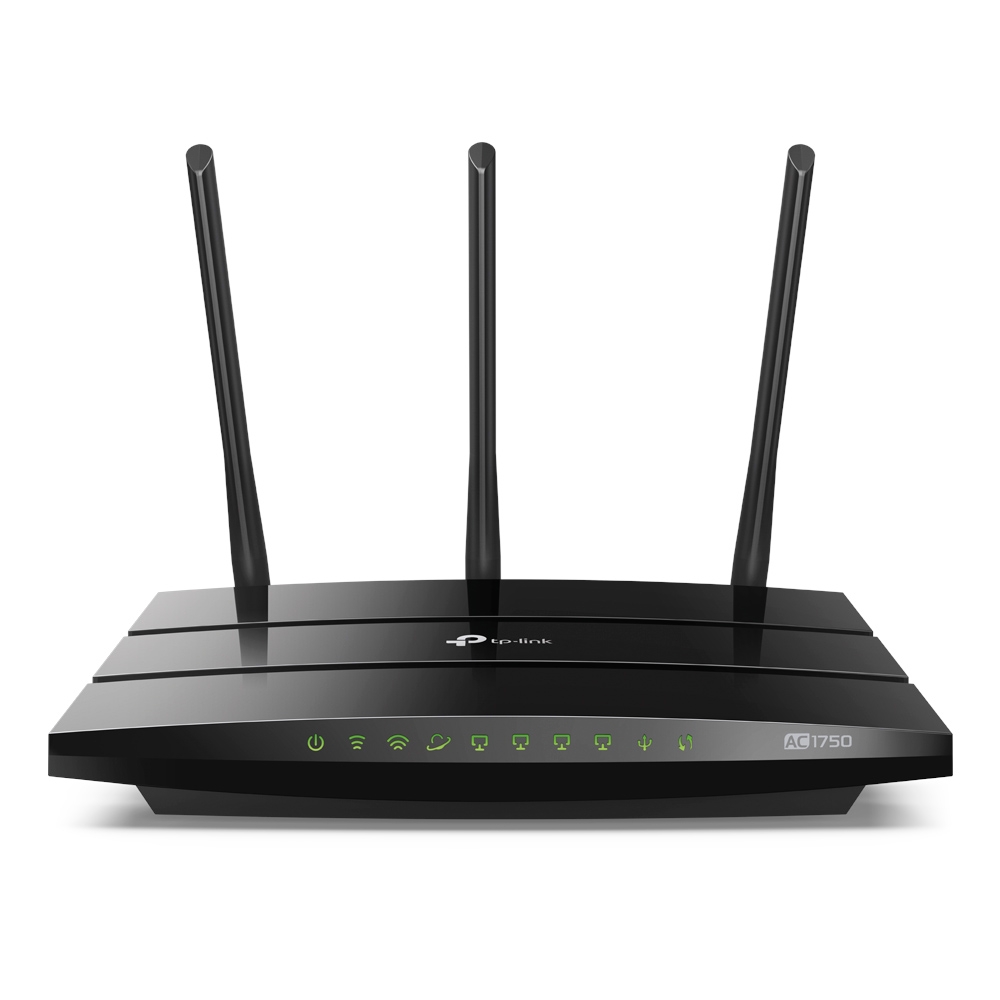

The Archer C7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
| brand |
|---|
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1750 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 450 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
3× Fixed High-Performance Antennas |
| WiFi Capacity | Medium
Dual-Band |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Qualcomm CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port
Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi On/Off Button Power On/Off Button WPS/Reset Button |
| Power | 12 V ⎓ 1.5 A |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 9.6 × 6.4 × 1.3 in (243 × 160.6 × 32.5 mm) |
| Package Contents | Wi-Fi Router Archer C7 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 5GHz: 11a 6Mbps-96dBm 11a 54Mbps: -79dBm 11ac HT20: -71dBm 11ac HT40: -66dBm 11ac HT80: -63dBm 2.4GHz: 11g 54M: -77dBm 11n HT20: -74dBm 11n HT40: -72dBm |
